1:24 scale
H413, H414, and H415
SAR 2-8-4 class 25 and 25 NC

5′ 0″ diam., 14 oval spokes, vee inner rim.
Outer hubs 15″ face dia., 1″ out from the tyre, pin between at 14″.
Driven hubs (H414) 18″ face dia., 1¼″ out from the tyre, pin between at 14″.

Casting: 63.5 mm tread dia., 55.6 mm i/d., outer hubs 1.1 mm, driven hub 1.3 mm out from the tyre, pin at 14.8 mm.

Source: Works drawings and No. 3405 measured at Quainton Road, June 2018.

Castings in a set for a Class 25, 25NC . Narrow gauge loco set prices . Casting prices and stock

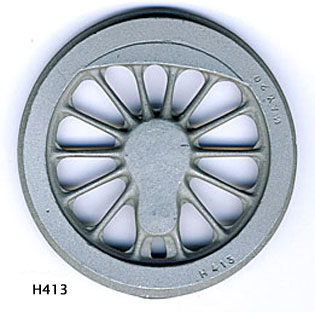

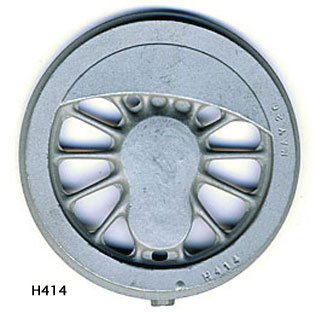

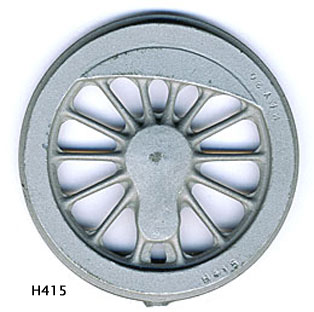

Casting H413   Casting H414   Casting H415

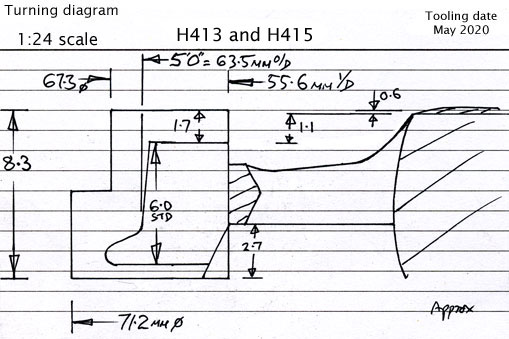

Cross section diagram of castings H413, 414

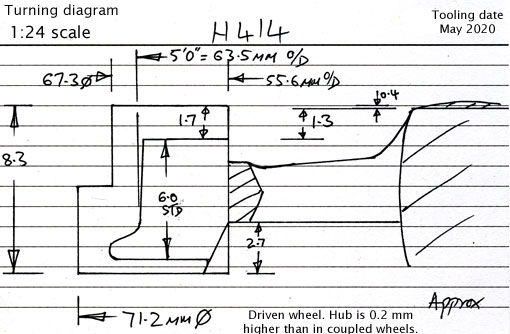

Cross section diagram of castings H414
