1:24 scale
Freelance driving wheels based on the PNKA 2-12-2T F10 class.

3′ 7½″ diam., 12 oval spokes, shallow rectangular inner rim.
Hub level with the tyre, pin between at 10″.

Casting: 46.0 mm tread dia., 35.9 i/d., pin at 10.6 mm.

Narrow gauge loco set prices . Casting prices and stock

Scan of a casting in a set for a PNKA 2-12-2T F10.

Scan of casting H259

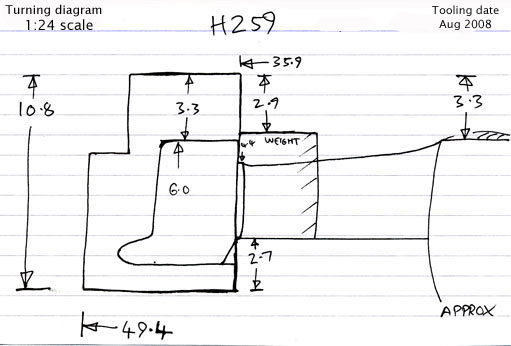

Cross section diagram of casting H259
