Netherlands 2-4-2T SS 531-545/NS 7100 class pony wheels.

1100 mm (3′ 7.3″) diam., 10 oval spokes, rectangular inner rim. Apparent tread 3½″.
Hub 12″ face dia., 2″ above the tyre.

Sources: Works drawing.

Casting: 24.4 mm tread dia., 20.6 mm i/d,
hub 6.8 mm dia, 1.1 mm out from the tyre.

Casting prices and stock . Netherlands, loco sets, price list

Scan of a casting in a set for a Netherlands NS 7100 class 2-4-2T

Scan of casting C418

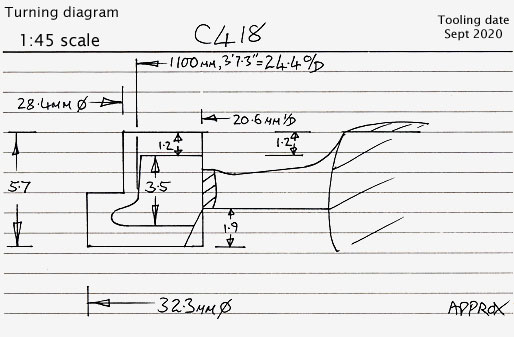

Cross section diagram of castings C418
This example shows a tyre width of 3.5 mm for Gauge 0 Fine.
For other standards remove more or less metal from the back of the wheel to give your chosen tyre width.
