1:45 scale
C416 (front), C417 (rear)
Netherlands 2-4-2T SS 531-545/NS 7100 class driving wheels.

1530 mm (5′ 0″) diam., 16 oval spokes, rectangular inner rim. Apparent tread 3½″.
Hub 15″ face dia., 2″ above the tyre. Pin between at 280 mm (= 11″).

Sources: Works drawing.

Casting: 33.9 mm tread dia., 29.9 mm i/d,
hub 8.5 mm dia, 1.1 mm out from the tyre. Pin between at 6.2 mm.

Casting prices and stock . Netherlands, loco sets, price list

Scan of a casting in a set for a Netherlands NS 7100 class 2-4-2T

Scan of casting C416   Scan of casting C417

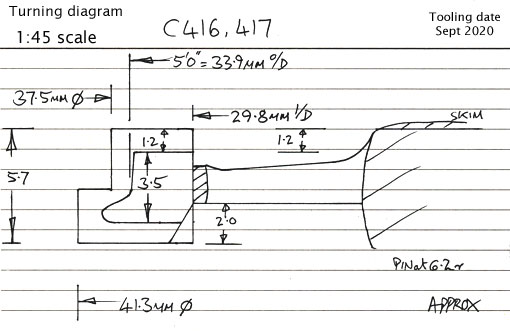

Cross section diagram of castings C416, 417
This example shows a tyre width of 3.5 mm for Gauge 0 Fine.
For other standards remove more or less metal from the back of the wheel to give your chosen tyre width.
