1:45 scale
C411 (front), C412 (rear)
Netherlands 0-4-0T SS 650/NS 8100 class driving wheels.

1100 mm (3′ 7.3″) diam., 12 oval spokes, rectangular inner rim. Apparent tread 3½″.
Hub 14″ face dia., level with the tyre. Pin between at 240 mm.

Sources: Drawing, photographs of preserved loco.

Casting: 24.4 mm tread dia., 20.5 mm i/d,
hub 7.9 mm dia, level with the tyre. Pin between at 5.3 mm.

Casting prices and stock . Netherlands, loco sets, price list

Scan of a casting in a set for a Netherlands SS 650/NS 8100 class 0-4-0T

Scan of casting C411   Scan of casting C412

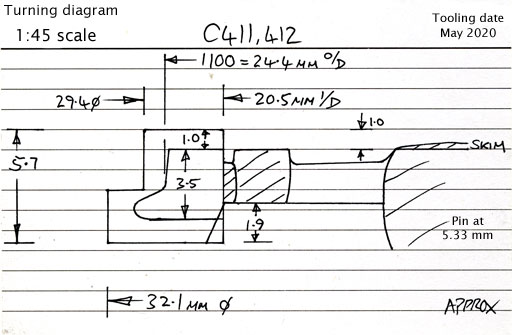

Cross section diagram of castings C411, 412
This example shows a tyre width of 3.5 mm for Gauge 0 Fine.
For other standards remove more or less metal from the back of the wheel to give your chosen tyre width.
