1:45 scale
C397 (mid), C398 (outer)
Netherlands 0-6-0 HSM600/NS3200 class driving wheels.

5′ 0″ diam., 16 rect spokes, almost flat inner rim. Apparent tread 5″.
Hub 16½″ face dia., 2½″ above the tyre. Pin in line at 10″

Sources: Sharp, Stewart works drawings, photographs.

Casting: 33.9 mm tread dia., 28.2 mm i/d,
hub 9.0 mm dia, 1.4 mm above the tyre. Pin in line at 5.6 mm.

Casting prices and stock . Netherlands, loco sets, price list

Scan of a casting in a set for a Netherlands HSM 600/NS 3200 class 0-6-0

Scan of casting C397   Scan of casting C398

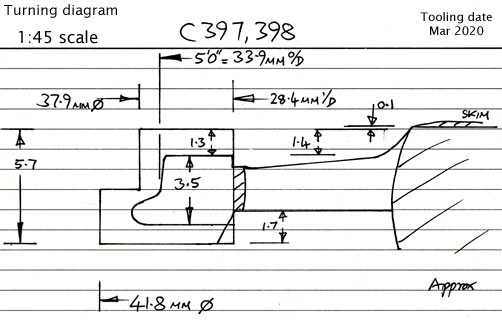

Cross section diagram of castings C397, 398
This example shows a tyre width of 3.5 mm for Gauge 0 Fine.
For other standards remove more or less metal from the back of the wheel to give your chosen tyre width.
