1:45 scale
Netherlands 4-4-2T HSM700/NS5500 class trailing wheels.

3′ 6″ diam., 10 oval spokes, almost flat inner rim. Apparent tread 4.9″.
Hub 12¾″ face dia., level with the tyre.

Sources: Sharp, Stewart works drawings, photographs.

Casting: 23.7 mm tread dia., 18.2 mm i/d, hub 8.5 mm dia, ½″ out from the tyre.

Casting prices and stock . Netherlands, loco sets, price list

Scan of a casting in a set for a Netherlands HSM 700/NS 5500 class 4-4-2T

Scan of casting C393

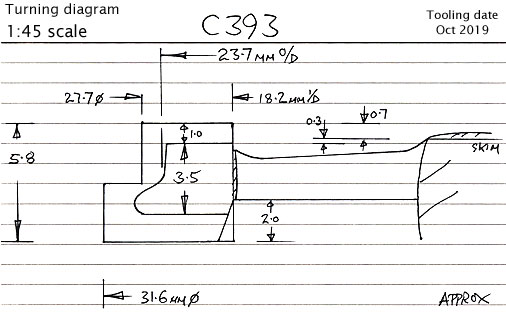

Cross section diagram of casting C393
This example shows a tyre width of 3.5 mm for Gauge 0 Fine.
For other standards remove more or less metal from the back of the wheel to give your chosen tyre width.
