1:45 scale
C370
Netherlands NS 1000 class 2-4-0

3′ 7.3″ (1100 mm) diam., 10 rect spokes; rectangular inner rim, apparent tread 4″.
Hub 11½″ face dia, 20 mm out from the tyre.

Sources: works drawings.

Casting: 24.4 tread dia., 20.1 i/d, hub 0.4 mm out from with the tyre.

Casting prices and stock . Netherlands, loco sets, price list

Scan of a casting in a set for a Netherlands HSM 74-98, 116-125/NS 1000 class 2-4-0.

Scan of casting C370

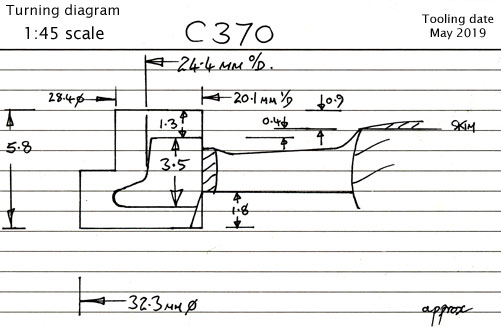

Cross section diagram of casting C370
This example shows a tyre width of 3.5 mm for Gauge 0 Fine.
For other standards remove more or less metal from the back of the wheel to give your chosen tyre width.
