C368
Netherlands NS3700 class 4-6-0, 8 wheel tender wheels.

3′ 7.3″ (1100 mm) diam., 10 oval spokes; rectangular inner rim, apparent tread 3.45″, tyre width 145 mm.
Hub 15″ face dia, level with the tyre.

Sources: works drawing.

Casting: 24.4 tread dia., 21.0 i/d, hub level with the tyre.

Casting prices and stock . Netherlands, loco sets, price list

Scan of a casting in a set for a Netherlands SS 700/NS 3700 class 4-6-0, 8 wheel tender

Scan of casting C368

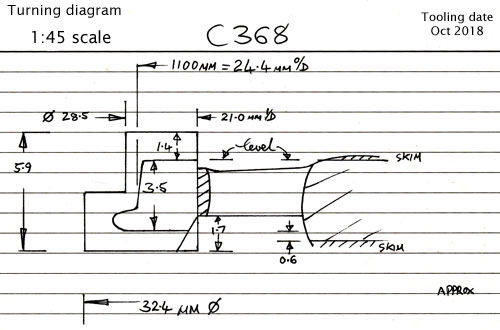

Cross section diagram of casting C368
