1:45 scale
C349
Swiss Furka Overalp Bahn (FO) class HG 3/4, 2-6-0T leading wheels.

600 mm (1′ 11½″) diam., 7 oval spokes, rectangular inner rim, apparent tread 66.5 mm.
Hub 185 mm face dia., 6 mm out from the tyre.

Source: works drawing.

Castings: 13.3 mm tread dia., 10.4 i/d, hub 0.1 mm out from the tyre.

Casting prices and stock . Swiss loco sets, price list

Scans of a casting in a set for a Furka Overalp Bahn HG 3/4

Scan of casting C349

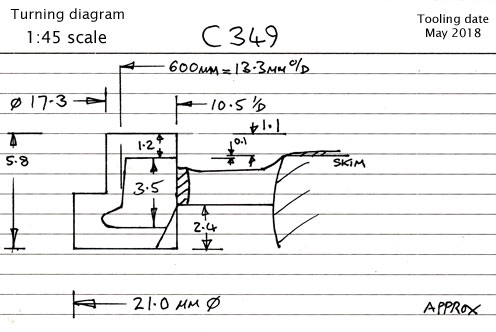

Cross section diagram of castings C349
