7 mm/ft scale
B434
NE 4-4-2 Z class/ LNER C7/1 Uniflow Loco and C7/2 class bogie wheels.

3′ 1¼″ diam., 12 oval spokes, apparent tread 4″.
Hub 13″ face dia., 1″ out from the tyre.

Casting: 21.7 tread dia., 17.0 i/d., hub 0.6 mm out from the tyre.

Casting prices and stock . NE loco sets, price list

Scan of a casting in a set for a LNER 4-4-2 C7/1 Uniflow class, LNER 4-4-2 C7/2 class.

Scan of casting B434

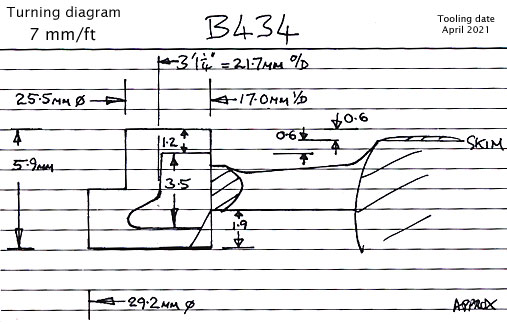

Cross section diagram of casting B434
This example shows a tyre width of 3.5 mm for Gauge 0 Fine.
For Scale7 remove more metal from the back of the wheel to give a tyre thickness of 3.2 mm instead of 3.5 mm.
