7 mm/ft scale
B357, B358
GC 0-6-2T 9C/9F/9O, LNER N5 driving wheels

5′ 1″ diam., 15 oval spokes, rectangular inner rim, apparent tread 5″.
Hub 15½″ face dia., pin between at 11″, hub is 2″ out from the tyre.

Sources: Beyer Peacock Works drawing.
E.M. Johnson, Locomotives of the Great Central Railway, 1: 19-26, Irwell Press (1989).

Casting: 35.6 mm tread dia., 29.8 mm i/d, hub 1.1 mm out from the tyre, pin at 7.0 mm.

Casting prices and stock . LNER loco sets, price list

Scans of castings in a set for: GC 0-6-2T 9C/9F/9O, LNER N5.

Scan of casting B357 Scan of casting B358

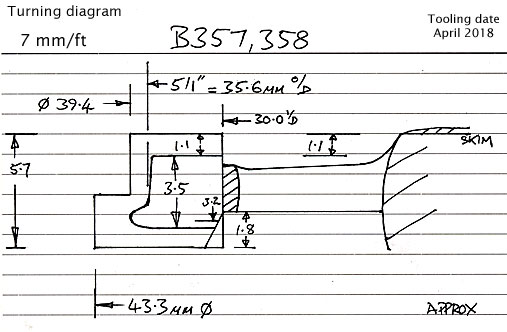

Cross section diagram of castings B357 and B358
This example shows a tyre width of 3.5 mm for Gauge 0 Fine.
For Scale7 remove more metal from the back of the wheel to give a tyre thickness of 3.2 mm instead of 3.5 mm.
