LNER 0-6-0 J39 driving wheels

5′ 2″ diam., 16 spokes, shallow rectangular inner rim, apparent tread 4 5/8″, tyre thickness 5 3/8″.
Hub 16½″ face dia., pin between at 12″, hub is 2 5/8″ out from the tyre.

Source: LNER Works drawing.

Casting: 36.2 tread dia., 30.8 i/d, hub level with the tyre, pin at 7.0 mm.

Casting prices and stock . LNER loco sets, price list

Scans of castings in a set for: LNER 0-6-0 J39.

Scan of casting B351 Scan of casting B352

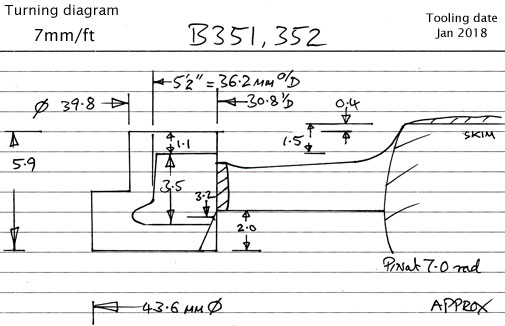

Cross section diagram of castings B351 and B352
