7 mm/ft
B117, B118
BR 2-10-0 9F driving wheels.

5′ 0″ diam., 15 oval spokes, vee shaped inner rim, apparent tread 4¼″
Hub face dias: B117, driven 18″, B118, coupled 16″; level with the tyre. Pin between at 14″.

Source: measured direct from a preserved loco at Butterley in 1995.

Castings: 35.0 mm tread diam., 29.9 mm i/d., hub level with the tyre, pin at 8.2 mm.

Casting prices and stock . BR loco sets, price list

Scan of the castings in a set for a BR 2-10-0 9F

Scan of castings B117   Scan of castings B118

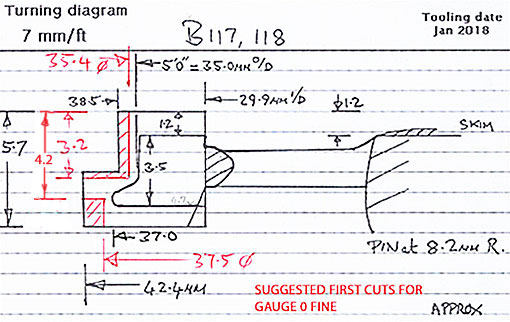

Cross section diagram for castings B117, B118
