GC 0-6-2T 9C/LNER N5 trailing wheel and CR 4-6-0 class 60 bogie wheel.

3′ 6″ diam., 10 oval spokes, rectangular inner rim, apparent tread 4½″.
Hub 13½″ face dia., 1¾″ out from the tyre.

Sources: Beyer Peacock Works drawing.

Casting: 24.5 mm tread dia., 19.0 mm i/d., hub 0.4 mm out from the tyre.

Casting prices and stock . GC loco sets, price list

Scan of a casting in a set for a GC 0-6-2T class 9C/ LNER N5, 4-4-0 NB K/ LNER D34.

Scan of casting B113

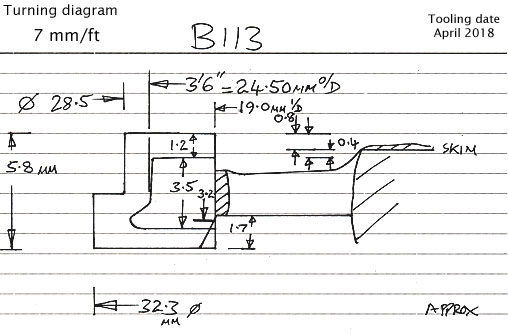

Cross section diagram of casting B113
This example shows a tyre width of 3.5 mm for Gauge 0 Fine.
For Scale7 remove more metal from the back of the wheel to give a tyre thickness of 3.2 mm instead of 3.5 mm.
