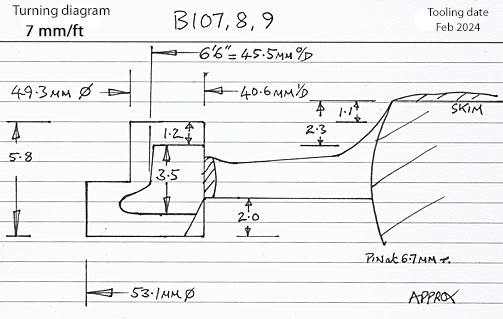

B107 front, B108 mid, B109 rear driving wheels.
6′ 6″ diam., 20 oval spokes, rectangular inner rim, apparent tread 4″, tyre width 5¾″.
Hub 18½″ face dia., 4″ out from the tyre, pin between at 11½″.
Source: preserved loco No 8572 at Weybourne in 1995.
Casting: - mm tread dia., - mm i/d, hub - mm out from the tyre, pin at - mm.
Casting prices and stock . GER loco sets, price list
Scan of a casting in sets for GE 4-6-0 S69/LNER B12/3
