Scale 1:8, 1½″: 1 ft. for 7¼″ gauge.
A82
L.M.S. Driving wheel for Black Five.

6′ 0″ diam., 19 oval spokes, vee inner rim, 4″ apparent tread, 6″ tyre width.
Hub 17½″ face dia., ½″ out from the tyre, pin between at 14″.

Source: No 44806 measured direct at Llangollen in 1995.

Casting: 229 mm tread dia., 200 i/d., hub 1.6 mm out from the tyre, pin at 44.5 mm.

7¼″ gauge price list . Stock

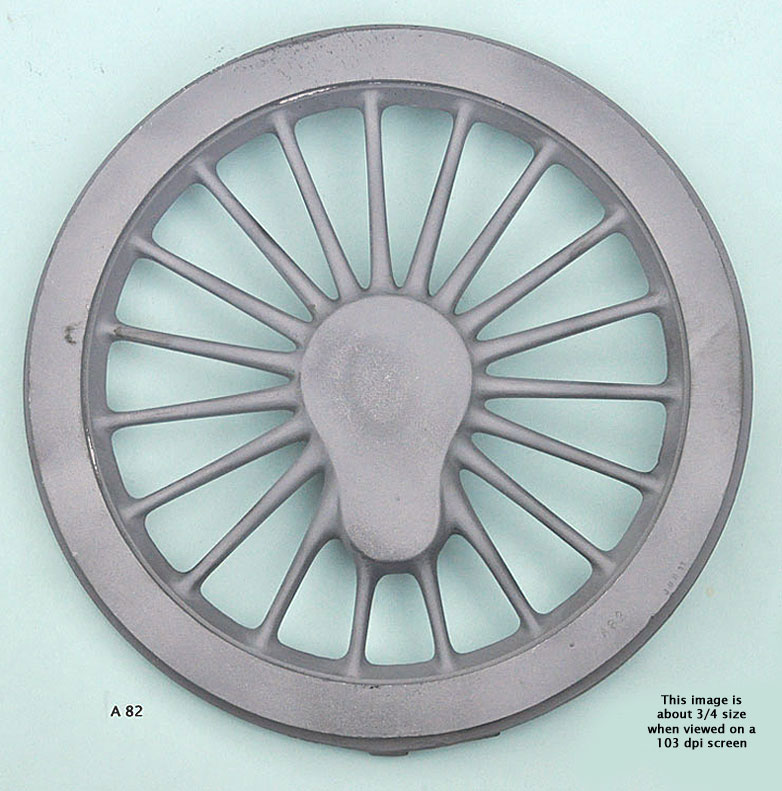

Scan of casting A82

Cross section diagram of casting A82
