Scale 1:8, 1½″: 1 ft. for 7¼″ gauge.
A64 (driven), A65 (coupled).
LNER 2-6-2 V2 driving wheels.

6′ 2″ diam., 18 oval spokes, inner rim steeply humped, apparent tread 4¾″,
Hub 19½″ face dia., middle boss 12½″dia., middle boss is ¼″ out from the tyre. Pin between at 13″

Source: Green Arrow measured direct at York.

Casting: 235 mm tread dia., 205 mm i/d., hub middle boss 0.8 mm out from the tyre, pin at 41.3 mm.

7¼″ gauge price list . Stock

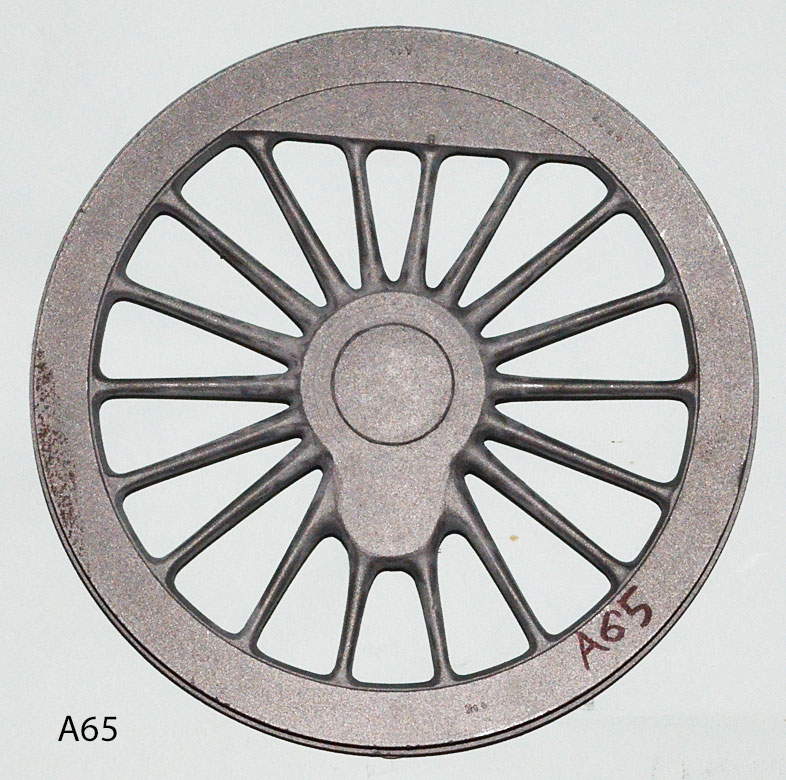

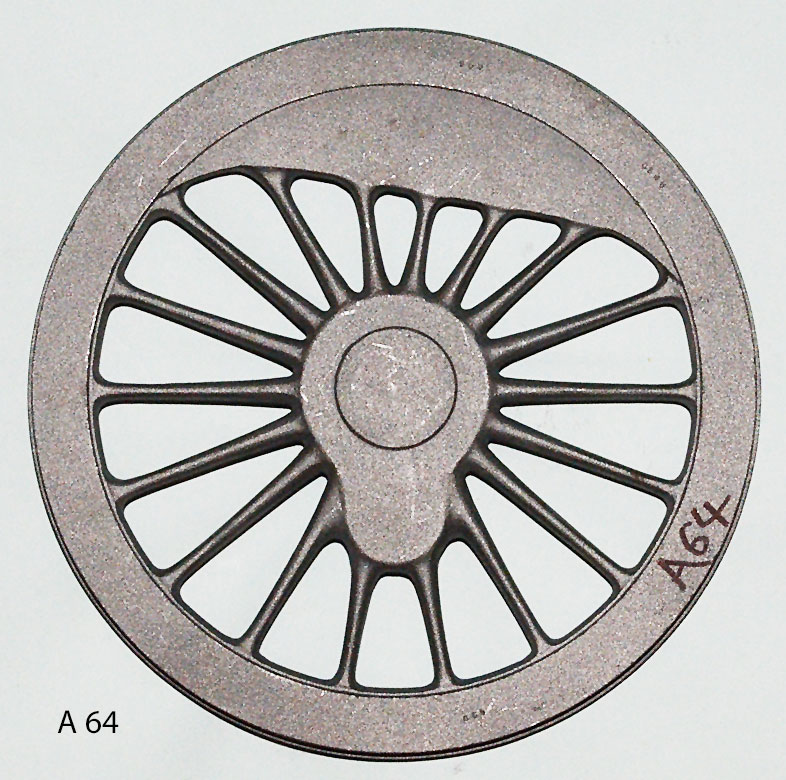

Scan of casting A64Scan of casting A65

Cross section diagram of casting A64, 65
