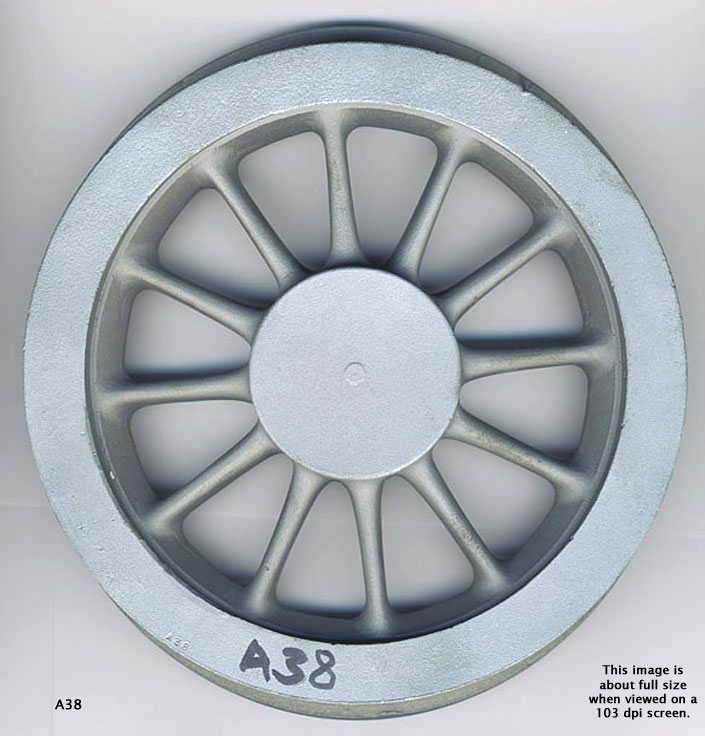

4′ 3″ diam., 12 oval spokes, vee inner rim, 4″ apparent tread, 6″ tyre width.
Hub 16″ face dia., ½″ out from the tyre.

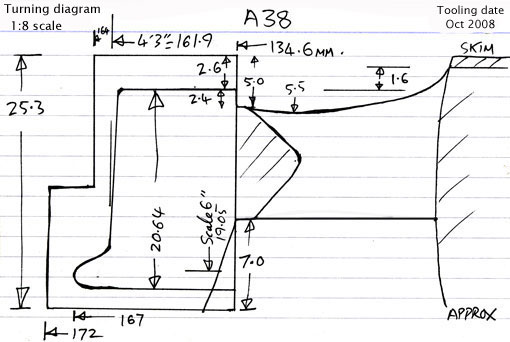

Casting: 161.9 mm tread dia., 134.6 i/d., hub 1.6 mm out from the tyre.
